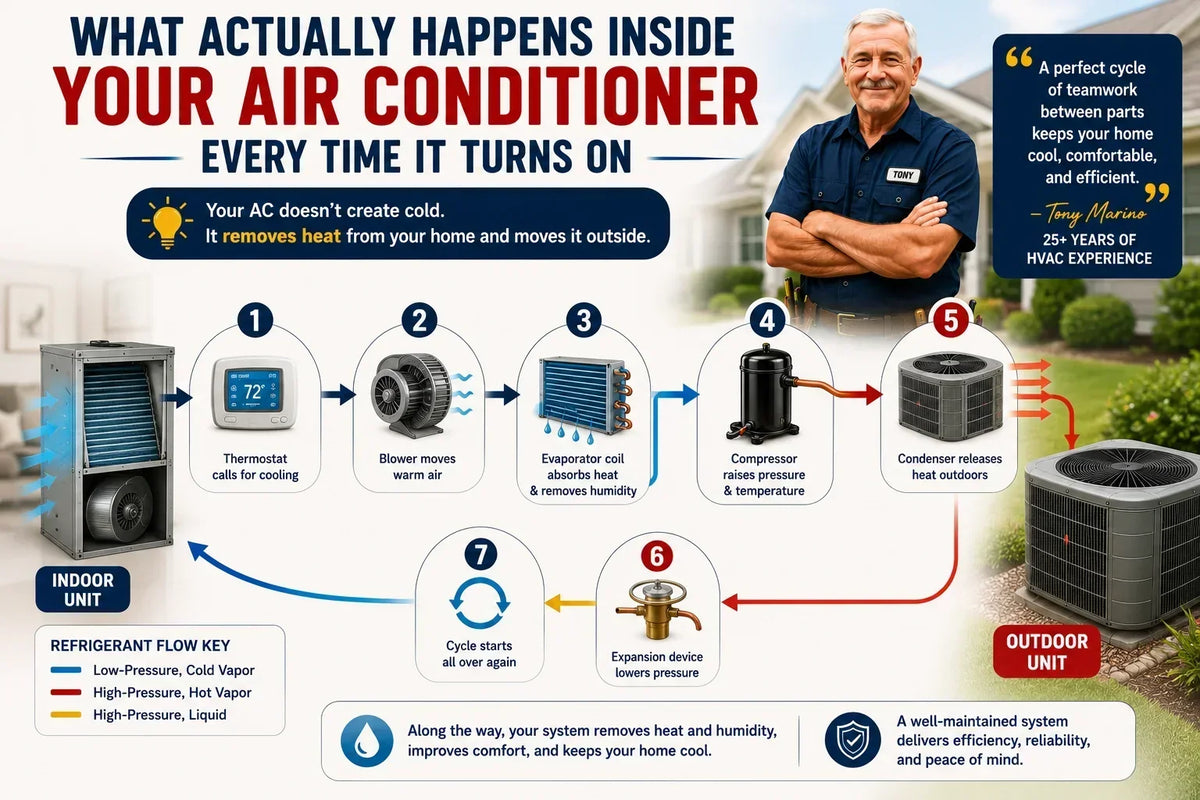

What Actually Happens Inside Your Air Conditioner Every Time It Turns On

I often compare an air conditioner to a moving company.

Think about moving from one house to another. The movers don't make your furniture disappear. They simply pick it up, transport it, and put it somewhere else.

Your air conditioner does something remarkably similar with heat.

It doesn't make the heat disappear.

It moves it.

Heat is absorbed from inside your home, transferred into the refrigerant, carried to the outdoor condenser, and released into the outside air. Then the refrigerant returns indoors and the process starts again.

During a hot summer day, this cycle can repeat continuously for hours.

U.S. Department of Energy — Energy Saver Program explains the basic principle behind residential air conditioning: cooling systems transfer heat from inside the home to the outdoors.

Once you understand that, many HVAC concepts become much easier to understand.

You'll have a better idea of why the indoor coil gets cold, why the outdoor condenser releases warm air, why condensate water forms, and why extremely hot weather makes the system work harder.

It also makes it easier to understand what you're paying for when you maintain, repair, or replace an air conditioner.

---

🌡️ It All Starts With the Thermostat

When homeowners think about their air conditioner, they usually picture the outdoor condenser sitting beside the house.

But the cooling cycle actually begins with one of the smallest and simplest components in the system:

The thermostat.

Throughout the day, the thermostat monitors the indoor temperature and compares it with the temperature you've selected.

If your thermostat is set to 72°F and the indoor temperature rises above that setting, the thermostat sends a signal to the HVAC system requesting cooling.

• That signal starts a chain reaction.
• The indoor blower begins moving air.
• The refrigeration system starts operating.
• The evaporator coil becomes cold.

And heat begins moving out of your home. The thermostat doesn't create the cooling. It simply tells the system when cooling is needed. From there, a carefully coordinated sequence of components takes over. And that's where the real engineering of your air conditioner begins.

I’ve always thought of the thermostat as the general manager of the HVAC system.

It doesn't do the actual cooling. Instead, it tells the different components when it's time to work together—much like a conductor coordinating an orchestra.

When the thermostat calls for cooling, a sequence of events begins. The indoor blower starts moving air, the outdoor condenser begins operating, the compressor starts circulating refrigerant, and the refrigeration cycle gets underway.

But here's something many homeowners don't realize: turning the thermostat way down does not make the air conditioner cool faster.

I've heard homeowners say they set the thermostat to 60°F when they come home from vacation because they want the house to cool down as quickly as possible.

Unfortunately, that's not how an air conditioner works.

The air coming from the vents doesn't suddenly become much colder because you changed the thermostat from 75°F to 65°F.

The thermostat simply tells the system how long to keep cooling.

If the house is 80°F and you set the thermostat to 65°F, the system has a much larger temperature difference to overcome than if you set it to 75°F. The equipment doesn't suddenly gain additional cooling capacity—it simply has to operate longer to reach the lower target.

That's why I recommend reasonable thermostat settings rather than extreme adjustments.

If you want the house cooler, set the thermostat to the temperature you actually want and let the system work toward it.

---

🌬️ Step One: The Blower Begins Moving Warm Air

When the thermostat calls for cooling, the indoor blower is one of the first major components to get involved.

The blower, typically located inside the furnace or air handler, begins pulling warm air from the living spaces through the return-air ductwork.

That air is then directed across the cold evaporator coil, where heat is transferred from the indoor air into the refrigerant.

Many homeowners don't realize just how much air their HVAC system moves.

During a hot summer afternoon, the blower may continuously circulate thousands of cubic feet of air every hour, repeatedly moving air from the rooms back through the system and returning conditioned air to the home.

It's a continuous circulation process.

Warm air leaves the rooms.

The HVAC system removes heat and moisture.

Conditioned air returns to the living spaces.

And the cycle continues until the thermostat determines that the desired temperature has been reached.

The blower doesn't actually cool the air. Its job is to move air.

It continuously draws warm indoor air through the return-air system and sends that air across the cold evaporator coil, where the actual heat exchange takes place.

As the air passes over the coil, heat is transferred into the refrigerant. Moisture may also condense on the cold coil and drain away through the condensate system.

The newly conditioned air then travels back into the home through the supply ducts.

I often compare this to the human circulatory system.

Your heart doesn't create oxygen. It pumps blood so oxygen can be transported throughout your body.

The HVAC blower works in a similar way. It doesn't create cooling. It circulates air so the evaporator coil can continuously remove heat and moisture from the home.

That's why airflow is so important.

If the airflow is restricted by a dirty filter, blocked return grille, crushed duct, undersized ductwork, or another obstruction, less air reaches the evaporator coil.

And when the system can't move enough air, its ability to transfer heat effectively can suffer—even when the compressor and other components are operating normally.

---

⚖️ Thermostat vs. Indoor Blower

Each component has a different job.

The thermostat decides when cooling is needed. The blower moves the air that allows the cooling process to happen.

Neither can deliver the intended result if the rest of the system isn't working properly.

---

❄️ Step Two: The Evaporator Coil Removes Heat

This is usually the point where homeowners stop and ask:

“Wait a second… if the air conditioner isn't actually producing cold air, what's really happening inside my house?”

That's where the evaporator coil comes in.

The coil is one of the most important components in the entire cooling process. As warm indoor air passes across its cold surface, heat moves from the air into the refrigerant flowing through the coil.

At the same time, moisture in the indoor air can condense on the coil and drain away.

So the evaporator coil isn't creating cold air.

It's removing heat and moisture from the air that's already inside your home.

And that simple process is at the heart of how your air conditioner keeps your house comfortable.

❄️ The Answer Is Right There: The Evaporator Coil

The answer is the evaporator coil.

Warm indoor air passes over the cold evaporator coil, and heat moves from the warmer air into the refrigerant flowing through the coil's tubing.

Think about holding an ice cube in your hand. Heat naturally moves from your warmer hand into the colder ice. Your air conditioner uses the same basic principle, but with a refrigerant specifically engineered to absorb and transport large amounts of heat as it changes state.

But heat isn't the only thing being removed.

The warm indoor air also contains moisture.

When that humid air contacts the cold evaporator coil, some of the moisture condenses on the coil's surface—much like water droplets forming on the outside of a cold glass on a hot summer day.

Those droplets collect in the condensate pan and flow away through the condensate drain.

That's why your air conditioner does two important jobs at once:

• It removes heat.
• It removes moisture.

I've had homeowners call because they noticed water steadily dripping from the condensate drain outside and thought something was leaking.

In many cases, that's actually a sign that the system is doing exactly what it should.

The evaporator coil is removing moisture from the indoor air, and that water needs somewhere to go.

ENERGY STAR® explains that effective air conditioning helps manage both indoor temperature and humidity, contributing to overall comfort.

Understanding this is important because a home can reach the thermostat setting and still feel uncomfortable if humidity isn't being controlled properly.

---

💨 Step Three: The Refrigerant Carries the Heat Outside

So what happens to all that heat once the refrigerant absorbs it?

It gets transported outside.

As the refrigerant absorbs heat from the indoor air, it changes state and carries that heat away from the evaporator coil.

The heated refrigerant then travels through the refrigerant lines connecting the indoor and outdoor units.

Those lines are typically insulated to help protect the refrigerant from unwanted heat exchange as it travels between the evaporator coil and the outdoor condenser.

Eventually, the refrigerant reaches the outdoor unit.

And that's where the next major stage of the cooling cycle begins.

The outdoor condenser takes the heat your system removed from inside your home and releases it into the outdoor air.

In other words, the heat that disappeared from your living room didn't disappear at all.

Your air conditioner simply moved it outside.

This is usually the point where homeowners begin to appreciate just how clever the refrigeration cycle really is.

The refrigerant isn't fuel, and it isn't consumed during normal operation. Instead, it behaves more like a delivery truck for heat.

It travels indoors, picks up heat, carries that heat outside, releases it into the outdoor air, and then returns indoors to repeat the process.

The refrigerant keeps making the trip again and again.

I enjoy explaining this because it changes the way homeowners think about the outdoor condenser.

Instead of seeing it as “the thing that makes cold air,” you can think of it as the place where the heat removed from your home is ultimately released.

Once that idea clicks, the rest of the air-conditioning system becomes much easier to understand.

---

💡 Did You Know?

Your air conditioner performs two important jobs whenever it operates:

• ✔ Removes heat from inside your home
• ✔ Removes excess moisture from the indoor air

It doesn't create cold air in the way many people imagine.

It continuously transfers heat from inside your home to the outdoors.

That process repeats throughout the cooling cycle, allowing the system to maintain a comfortable indoor environment.

---

⚙️ Step Four: The Compressor Keeps the Refrigerant Moving

After passing through the evaporator coil, the refrigerant has absorbed heat from inside your home.

At this point, the refrigerant is a low-pressure vapor carrying that unwanted heat toward the outdoor unit.

Now it reaches one of the most important components in the entire system:

The compressor.

I often describe the compressor as the heart of the air-conditioning system.

Its job is to compress the refrigerant vapor, raising its pressure and temperature and helping drive the refrigerant through the rest of the refrigeration cycle.

From there, the hot, high-pressure refrigerant travels toward the outdoor condenser coil, where the heat it collected inside your home can finally be released into the outside air.

The compressor doesn't create the heat.

It helps move the refrigerant and prepare it to release the heat it has collected from your home.

And that brings us to the outdoor condenser—the component most homeowners see sitting beside the house, but now perhaps understand a little differently.

You’ll often hear HVAC technicians describe the compressor as the heart of the air-conditioning system, and there’s a good reason for that.

Without the compressor, the refrigerant wouldn't circulate through the system properly, and the cooling cycle would eventually come to a stop.

The compressor keeps the refrigerant moving through its continuous loop while increasing its pressure and temperature so the heat absorbed inside your home can be released outdoors.

🚲 Think of a Bicycle Pump

A bicycle pump is a simple way to understand what happens during compression.

When you pump air into a tire, the air inside the pump becomes warmer as it is compressed.

An air-conditioner compressor works on a similar principle. It compresses the refrigerant vapor, raising its pressure and temperature before sending it toward the outdoor condenser coil.

That change in pressure and temperature is essential because it allows the refrigerant to release the heat it picked up inside your home.

The compressor doesn't create the cooling.

It creates the conditions that allow the refrigeration cycle to continue moving heat.

I often hear homeowners assume that the compressor somehow produces the cold air.

It doesn't.

Think of a delivery truck. The truck doesn't create the packages it's carrying—it simply transports them from one place to another.

The compressor plays a similar role with refrigerant.

Its job is to keep the refrigerant moving and maintain the pressure difference needed for effective heat transfer.

When the compressor is operating properly, the refrigeration cycle can continue doing its job.

When compressor performance begins to deteriorate, cooling capacity can decline, operating conditions can change, and other components may be placed under additional stress.

---

🌞 Step Five: The Outdoor Condenser Releases the Heat

Now we arrive at the part of the system homeowners see every day:

The outdoor condenser.

It's easy to look at that large metal cabinet beside the house and think:

“That's my air conditioner.”

But technically, it's only one part of the complete system. And it's not sitting outside making cold air.

It's actually a large heat exchanger.

The hot, high-pressure refrigerant arriving from the compressor contains the heat that was removed from inside your home.

The outdoor condenser's job is to transfer that heat from the refrigerant into the outdoor air.

The condenser fan pulls outdoor air across the coil, helping carry the unwanted heat away.

So when you feel warm air blowing from the top of your outdoor unit, that's actually good news.

That's heat from inside your home being released into the outdoor air.

The colder air you're enjoying indoors and the warm air you're feeling outdoors are two parts of the same continuous heat-transfer process.

At the outdoor condenser, the refrigeration cycle reaches one of its most important stages.

Inside the cabinet is the condenser coil, made up of many thin metal fins designed to provide a large surface area for heat transfer. As the hot, high-pressure refrigerant flows through the coil, the outdoor fan moves air across those fins.

That outdoor air absorbs heat from the refrigerant and carries it away into the atmosphere.

As the refrigerant gives up its heat, it gradually changes from a hot vapor into a high-pressure liquid. It can then continue through the refrigeration cycle and head back toward the indoor coil.

🚗 Think of the Outdoor Condenser Like a Car Radiator

I've always liked comparing an outdoor condenser to the radiator in a car.

A running engine produces heat, and the radiator needs a steady supply of airflow to remove that heat.

If the radiator becomes blocked or airflow is restricted, the engine can struggle to shed heat effectively.

Your air conditioner faces a similar challenge.

The condenser has to release the heat that was removed from your home. If shrubs, fencing, storage items, lawn equipment, or overgrown vegetation restrict airflow around the unit, heat cannot escape as efficiently.

The system may continue cooling your home, but it may have to work harder to accomplish the same job.

That's why I encourage homeowners to keep the area around the outdoor condenser open and unobstructed.

U.S. Department of Energy — Energy Saver Program provides guidance on maintaining HVAC equipment and supporting efficient operation.

---

⚖️ Indoor Unit vs. Outdoor Unit

These aren't two separate air conditioners.

They're two halves of the same refrigeration system.

• The indoor coil collects the heat.
• The refrigerant carries the heat.
• The compressor keeps the refrigerant moving.
• And the outdoor condenser releases the heat.

That's the basic journey your air conditioner's heat takes every time the system runs.

🔄 Step Six: The Expansion Device Starts the Cycle Again

The refrigerant has now released the heat it collected from inside your home, but it isn't quite ready to return to the evaporator coil yet.

Before it goes back indoors, it passes through a small but extremely important component called the expansion device.

❄️ The Expansion Device Resets the Refrigeration Cycle

The expansion device reduces the pressure of the refrigerant before it enters the indoor evaporator coil.

As the refrigerant pressure drops, its temperature also falls, preparing it to absorb more heat when it reaches the cold evaporator coil.

Most homeowners never see or hear about this component, but it plays a critical role in keeping the refrigeration cycle operating properly.

Without the pressure change created by the expansion device, the refrigerant would not be in the right condition to efficiently absorb heat from the indoor air.

And that's what makes the whole process work.

The refrigerant isn't simply traveling back and forth between two locations.

It's continually changing pressure, temperature, and state as it moves through the system, allowing it to absorb heat indoors and release that heat outdoors.

---

🔄 The Refrigeration Cycle Is a Continuous Loop

This is one of the most important things I want homeowners to understand:

The cooling cycle doesn't happen once. It keeps repeating.

The refrigerant:

1. ❄️ Enters the evaporator coil and absorbs heat from indoors.
2. 💨 Leaves the evaporator as a low-pressure vapor.
3. ⚙️ Passes through the compressor, which raises its pressure and temperature.
4. ☀️ Travels through the outdoor condenser and releases heat outside.
5. 💧 Becomes a high-pressure liquid as it gives up its heat.
6. 🔽 Passes through the expansion device, where its pressure drops.
7. ❄️ Returns to the evaporator coil ready to absorb more heat.

Then the entire process starts again.

On a hot summer afternoon, this cycle can continue for hours.

Quietly, continuously, and repeatedly, your air conditioner is moving heat from inside your home to the outdoors.

And it keeps doing that until the thermostat determines that the home has reached the desired temperature.

🔁 The Entire Cooling Cycle Happens Again and Again

What often surprises homeowners is how many times this entire process repeats during a typical summer day.

Whenever the thermostat senses that the indoor temperature has risen above the desired setting, it calls for cooling. The indoor blower moves warm air across the evaporator coil. The refrigerant absorbs heat from that air, the compressor moves the heated refrigerant toward the outdoor unit, and the condenser releases that unwanted heat into the atmosphere.

The refrigerant then returns indoors, ready to begin the process again.

And the cycle continues until the thermostat is satisfied.

That's one of the things I've always found remarkable about modern air conditioning.

Hundreds of individual components—motors, electrical controls, coils, refrigerant lines, fans, sensors, valves, safety controls, and more—work together so quietly that most homeowners never think about them.

That reliability isn't accidental.

It depends on the entire system being properly designed, installed, and maintained.

Correct refrigerant charge, appropriate airflow, properly matched equipment, sound electrical connections, clean coils, adequate ductwork, and professional commissioning all contribute to reliable system operation.

When those pieces work together properly, a modern HVAC system can provide dependable comfort for many years.

Air-Conditioning, Heating, and Refrigeration Institute (AHRI) provides certification resources for matched HVAC equipment and system performance.

---

🚨 Signs the Cooling Cycle May Not Be Working Properly

Understanding the basic refrigeration cycle also gives homeowners a better idea of what normal operation looks like.

If something changes, certain symptoms may indicate that the system needs professional attention.

For example:

• 🌡️ The vents are blowing noticeably warm air
• 🌀 The outdoor condenser isn't operating when cooling is requested
• ❄️ The indoor evaporator coil is repeatedly freezing
• ⏱️ The system runs continuously but struggles to reach the thermostat setting
• 🔊 New or unusual noises develop
• 💧 Water appears where it shouldn't
• ⚡ The system repeatedly trips a breaker or safety control
• 🏠 Cooling becomes noticeably weaker or less consistent

None of these symptoms automatically identifies a specific failed component.

A frozen coil, for example, can result from several different problems, including restricted airflow or refrigerant-related issues.

The important thing is to recognize that the cooling cycle isn't operating normally.

That's when it's better to have the complete system evaluated rather than simply assuming the outdoor condenser is the problem.

Knowing how your air conditioner works doesn't make you an HVAC technician.

But it does give you something valuable:

The ability to recognize when your system is behaving differently—and communicate that clearly to the professional who services it.

I’ve been on a lot of service calls where the homeowner thought the compressor was bad, but it was something very simple like a dirty air filter restricting airflow, a bad capacitor that won’t let the outdoor fan start or a clogged condensate drain that trips a safety switch. That’s why I always recommend having a qualified HVAC technician evaluate the entire system before jumping to conclusions. Today’s air conditioners are advanced systems and many problems can cause similar signs and symptoms.

---

📋 Homeowner Cooling Cycle Checklist

Understanding how your air conditioner works can help you spot problems early. Before each cooling season, ask yourself:

• ✔ Is the air filter clean?
• ✔ Is the outdoor condenser free from debris and overgrown landscaping?
• ✔ Are all supply and return vents open?
• ✔ Is cool air coming from every register?
• ✔ Is the condensate drain flowing properly?
• ✔ Has the system received professional maintenance recently?
• ✔ Is the thermostat operating normally?

Small maintenance items often prevent much larger repairs later.

---

❓ Questions to Ask Your HVAC Contractor

If you're curious about how your system is operating, consider asking:

• ✔ Is my refrigerant charge within manufacturer specifications?
• ✔ Is airflow properly balanced throughout the home?
• ✔ Is my evaporator coil clean?
• ✔ Is my outdoor condenser releasing heat efficiently?
• ✔ Have operating pressures and temperatures been checked?
• ✔ Is my complete HVAC system AHRI-certified?
• ✔ Is my system operating as the manufacturer intended?

Professional testing provides answers that simple observation never can.

🧰 Tony's Toolbox

One of the best ways to think about an air conditioner is this:

It isn't a machine that creates cold.

It's a machine that moves heat.

Once you understand that simple idea, everything else about your HVAC system—from airflow and refrigerant to maintenance and efficiency—becomes much easier to understand.

Understanding the basic refrigeration cycle also gives homeowners a better idea of what normal operation looks like.

If something changes, certain symptoms may indicate that the system needs professional attention.

For example:

• 🌡️ The vents are blowing noticeably warm air
• 🌀 The outdoor condenser isn't operating when cooling is requested
• ❄️ The indoor evaporator coil is repeatedly freezing
• ⏱️ The system runs continuously but struggles to reach the thermostat setting
• 🔊 New or unusual noises develop
• 💧 Water appears where it shouldn't
• ⚡ The system repeatedly trips a breaker or safety control
• 🏠 Cooling becomes noticeably weaker or less consistent

None of these symptoms automatically identifies a specific failed component.

A frozen coil, for example, can result from several different problems, including restricted airflow or refrigerant-related issues.

The important thing is to recognize that the cooling cycle isn't operating normally.

That's when it's better to have the complete system evaluated rather than simply assuming the outdoor condenser is the problem.

Knowing how your air conditioner works doesn't make you an HVAC technician.

But it does give you something valuable:

The ability to recognize when your system is behaving differently—and communicate that clearly to the professional who services it.

Tony
The Smart Tech Guy
Factory Furnace Outlet

Next Blog: Why Preventive Maintenance Costs Less Than Emergency Repairs
